The Honeywell Pro 3000 thermostat offers a user-friendly design, making it easy to install and operate. This guide provides step-by-step instructions for a smooth installation process, ensuring optimal performance and energy efficiency. Proper installation is crucial for safety and functionality, as outlined in the official Honeywell Pro 3000 installation manual.
1.1 Overview of the Honeywell Pro 3000 Thermostat
The Honeywell Pro 3000 is a non-programmable digital thermostat designed for simplicity and efficiency. It features a user-friendly interface with a clear digital display, making it easy to adjust and monitor temperature settings. Compatible with various heating and cooling systems, including heat pumps and gas furnaces, it ensures reliable performance. The thermostat is compact, energy-efficient, and suitable for residential use, offering straightforward operation for optimal comfort control;
1.2 Importance of Proper Installation
Proper installation of the Honeywell Pro 3000 thermostat is crucial for ensuring safety, optimal performance, and energy efficiency. Incorrect installation can lead to system malfunctions, safety hazards, or reduced efficiency. Following the manufacturer’s guidelines ensures reliable operation, prevents wiring issues, and guarantees compatibility with your heating and cooling system. A well-installed thermostat also enhances comfort and energy savings, making it essential to adhere to the installation manual’s instructions carefully.
System Compatibility and Requirements
The Honeywell Pro 3000 thermostat is designed to work with various heating and cooling systems, including heat pumps and gas or electric furnaces. It supports multi-stage systems and requires specific power supply configurations for optimal performance. Compatibility checks ensure seamless integration with existing HVAC setups, while power requirements and safety standards must be met to avoid operational issues and ensure reliable temperature control.
2.1 Heating and Cooling System Compatibility
The Honeywell Pro 3000 thermostat is compatible with a wide range of heating and cooling systems, including heat pumps, gas furnaces, and electric systems. It supports both single-stage and multi-stage systems, ensuring versatility for various HVAC configurations. Proper system compatibility ensures efficient temperature control and optimal performance, making it suitable for residential and light commercial applications. Always verify system compatibility before installation to guarantee seamless operation and reliability.
2.2 Power Requirements and Safety Considerations
The Honeywell Pro 3000 thermostat operates on a standard 20-30 VAC power supply, with a running current of 0.02-1.0 A. It is designed to function within an operating temperature range of 32 to 120°F (0 to 48.9°C) and relative humidity of 5 to 90% (non-condensing). Always disconnect power before installation to ensure safety. Follow manufacturer guidelines to avoid electrical hazards and guarantee proper system operation. Adhere to safety protocols for a secure setup.
Tools and Materials Needed
Ensure you have a screwdriver, pencil, and drill for mounting. Additional materials like wall anchors and wiring connectors may be necessary for a secure installation.
3.1 Essential Tools for Installation
The essential tools for installing the Honeywell Pro 3000 thermostat include a screwdriver, pliers, wire strippers, and a drill. A pencil is also needed for marking wall holes. Ensure you have these tools readily available to streamline the process. Proper tools prevent damage to components and ensure a secure, professional-grade installation. Refer to the manual for specific tool recommendations to avoid complications during setup.
3.2 Additional Materials Required
Additional materials needed for Honeywell Pro 3000 installation include wall anchors, adhesive wall pads for damage-free mounting, and wire connectors. Insulation for exposed wires is recommended to prevent damage. A level ensures proper alignment during wallplate mounting. These materials are essential for a secure and efficient installation, as outlined in the Honeywell Pro 3000 installation manual. Proper preparation ensures a seamless setup process.
Wallplate Installation
Begin by removing the old thermostat and ensuring the wallplate is level. Mark hole positions with a pencil, then pull wires through the provided opening. Follow the installation directions carefully to secure the wallplate properly, ensuring a stable base for the Honeywell Pro 3000 thermostat.
4.1 Removing the Old Thermostat
Start by switching off the power to the heating/cooling system at the circuit breaker. Gently pull the old thermostat away from the wall to access the wires behind it. Carefully disconnect the wires from their terminals, labeling them if necessary for reconnection later. Remove any screws or clips holding the thermostat in place. Once free, set the old unit aside and ensure the area is clear for the new installation.
4.2 Mounting the New Wallplate

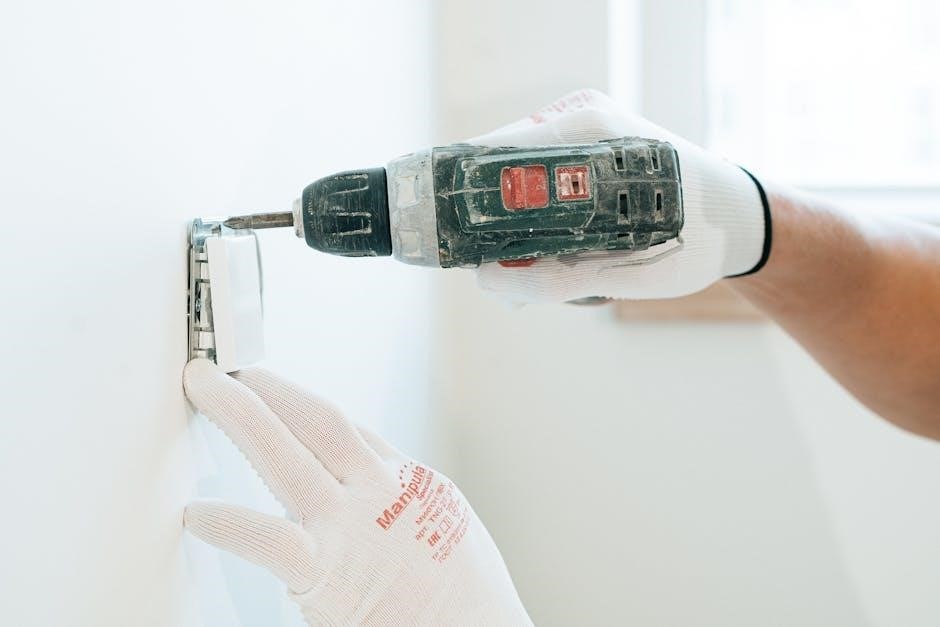

Separate the wallplate from the thermostat as shown in the manual. Pull the wires through the designated wire hole and position the wallplate on the wall. Ensure it is level using a spirit level for proper alignment. Mark the screw hole positions with a pencil and drill pilot holes if necessary. Secure the wallplate to the wall using the provided screws, ensuring it is tightly fastened for stability and accurate temperature sensing.
Wiring and Terminal Designations
Understand terminal labels to connect wires correctly. Ensure proper wire connections to avoid system malfunctions. Follow the manual’s guidelines for safe and accurate wiring procedures.
5.1 Understanding Terminal Labels
Understanding terminal labels is essential for correct wiring. Each terminal (R, W, Y, G, C, etc.) serves a specific function. The R terminal connects to the HVAC system’s power, while W and Y control heating and cooling. The G terminal operates the fan, and C provides common wiring. Refer to the Honeywell Pro 3000 manual for precise terminal designations and connections to ensure safe and proper installation.
5.2 Connecting Wires to the Thermostat
Connect the wires to the thermostat by matching each wire to its corresponding terminal. Use the wiring diagram from the Honeywell Pro 3000 manual to ensure accuracy. Securely fasten each wire to prevent loose connections. Double-check the wiring to avoid mismatches, which could damage the system. Proper wiring ensures safe and efficient operation of the thermostat, maintaining optimal heating and cooling performance throughout your home.
Installer Setup and Configuration
Proper configuration ensures optimal performance. Follow the setup procedure to match the thermostat to your HVAC system, customize features, and review factory settings for accurate operation.
6.1 Configuring the Thermostat Settings
Press and hold the UP and DOWN buttons to access settings. Match the thermostat to your HVAC system, customizing features like heat/cool thresholds and fan operation. Ensure factory settings are configured correctly for optimal performance. Adjust settings to align with your system type, whether gas, oil, or heat pump. Verify emergency heat and system test modes are properly set for safe and efficient operation.
6.2 Setting Up the Operation Mode
Select the operation mode (Heat, Cool, or Emergency Heat) based on your system type. For heat pumps, ensure the auxiliary heat setting is enabled if required. Adjust the fan operation switch to match your system’s needs. After configuring, perform a system test to ensure all modes function correctly. This step ensures the thermostat operates efficiently and safely, tailored to your specific HVAC setup and preferences.
System Testing and Verification
After installation, test the system to ensure all components function correctly. Verify heating, cooling, and fan modes, and check for proper temperature regulation and energy efficiency. This step confirms the system operates safely and as intended, providing reliable performance and comfort. Always refer to the Honeywell Pro 3000 manual for specific testing procedures and guidelines.
7.1 Pre-Installation Checks
Before installing the Honeywell Pro 3000 thermostat, ensure compatibility with your heating/cooling system and verify power requirements. Check for intrinsic safety certifications if used in hazardous environments. Review the manual for specific guidelines and ensure all necessary tools and materials are available. Verify the system’s voltage and operating ranges to match your setup. Proper pre-installation checks prevent delays and ensure a safe, efficient installation process.
7.2 Testing the System Post-Installation
After installation, test the Honeywell Pro 3000 thermostat by checking its response to temperature changes. Verify that heating, cooling, and fan modes operate correctly. Ensure the display shows accurate temperature readings and all buttons function properly. Check for proper power supply and confirm the system operates within the specified ambient temperature (32–120°F) and humidity (5–90% non-condensing) ranges. Address any issues promptly, referring to the troubleshooting section if needed.
Troubleshooting Common Issues
Identify common issues like system non-response or incorrect temperature settings. Check wiring connections, power supply, and ensure settings are within acceptable ranges. Refer to the manual for detailed solutions or contact support if problems persist.
8.1 Common Installation Problems
Common issues during Honeywell Pro 3000 installation include incorrect wiring, improper wallplate mounting, and system incompatibility. Ensure all connections match the terminal designations and verify system compatibility. Issues like temperature settings not changing or the system not responding can often be resolved by checking power supply and wiring. Always refer to the manual for specific troubleshooting steps to avoid further complications and ensure a smooth setup.
8.2 Diagnostic Tips and Solutions
For troubleshooting, check wiring connections and ensure they match terminal labels. Verify power supply and system compatibility. If the display is blank, check circuit breakers or fuses. For temperature inaccuracies, calibrate the thermostat. Refer to the manual for detailed diagnostic steps. Contact Honeywell support for unresolved issues. Regular maintenance and updates can prevent recurring problems, ensuring optimal performance and reliability of your Honeywell Pro 3000 thermostat.
Maintenance and Additional Resources
Regularly clean the thermostat and check battery levels. Refer to the Honeywell Pro 3000 user manual for detailed maintenance tips and troubleshooting guides. Ensure optimal performance by following manufacturer recommendations and accessing official support resources for any assistance needed.
9.1 Routine Maintenance Tips
Regular maintenance ensures optimal performance of your Honeywell Pro 3000 thermostat. Clean the device with a soft cloth and check battery levels monthly. Inspect wires for damage and ensure proper connections. Refer to the user manual for calibration instructions and troubleshooting guides. Routine checks prevent operational issues and extend the lifespan of your thermostat. For detailed instructions, access the official Honeywell Pro 3000 Series support resources online.
9.2 Accessing User Manuals and Support
For the Honeywell Pro 3000 thermostat, user manuals and support resources are readily available online. Visit the official Honeywell Home website to download the installation manual or quick guide. Additionally, contact Customer Care at 1-800-468-1502 for assistance. These resources ensure a smooth installation process and address any questions or issues you may encounter during setup or operation.
